PLASTIC BEARING C6020-PEEKPSS
| CHARACTERISTICS | No lubricating oil needed due to self-lubricity of PEEK & fluorine plastic.
Excellent corrosion resistant plastic bearing |
|---|---|
| TEMPERATURE | Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 260 degree c. ・Melting point 285 degree c. ・Standard continuous use: temperature below 200 degree c. |
| REVOLUTIONS | ・In atmosphere within 300 RPM
・Under water a few thousand RPM（Subject to condition） |
| CHEMICAL PROPERTIES | Chemical resistance of stainless ball (SUS304) ・Weak against sulfuric acid, hydrochloric acid, hydrofluoric acid, oxalic acid. For details, please contact us. |
| PRE-LOAD | ・Please use without applying preload as much as possible. |

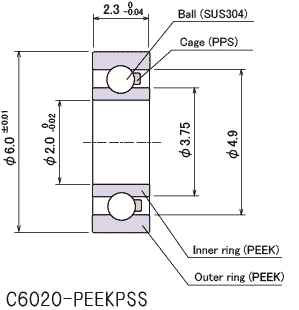

| SPECIFICATIONS | ［Material］ Inner/Outer ring: PEEK Balls: SUS304 Retainer: PPS ［Balls］ 0.8 mm ［Retainer］ P0428TK-ETFE |
| USAGE | ・Under water, solution
・Bearing used in clean room ・Corrosion-resistant environment ・Nonmagnetic environment |
| Specifications in this catalogue is subject to change without prior notice. |
