PLASTIC BEARING C280150-PEEK
| CHARACTERISTICS | No lubricating oil needed due to self-lubricity of PEEK & fluorine plastic.
Excellent corrosion resistant plastic bearing |
|---|---|
| TEMPERATURE | Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 92 degree c. ・Melting point 263 degree c. ・Standard continuous use: temperature from 90 to 150 degree c. (Subject to conditions） |
| LOAD | ・Allowable radial load 68.6N (7kg) |
| REVOLUTIONS | ・In atmosphere within 300 RPM
・Under water a thousand RPM (subject to condition) |
| CHEMICAL PROPERTIES | Chemical resistance of ceramic ball ・Resistant to most chemicals but weak against hydrochloric acid, hydrofluoric acid, and strong alkali. For details, please contact us. |
| PRE-LOAD | ・Please use without applying preload as much as possible. |

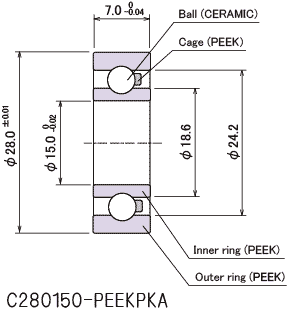

| SPECIFICATIONS | ［Material］ Inner/Outer ring: PEEK Balls: Ceramic Retainer: PEEK ［Balls］ 5/32 ［Retainer］ P2108TK-PEEK |
| USAGE | ・Under water, solution
・Bearing used in clean room ・Corrosion-resistant environment ・Nonmagnetic environment |
| Specifications in this catalogue is subject to change without prior notice. |
| Please do not hesitate to make any request to our Venture Buisiness Division for calalogue, inquiry, quotation and order of our products. |  |
 |
