| TOP>PRODUCTS＞RESIN BEARINGS＞D-SERIES（RESIN ROLLER） |
| D-SERIES（RESIN ROLLER） |
 |
 |

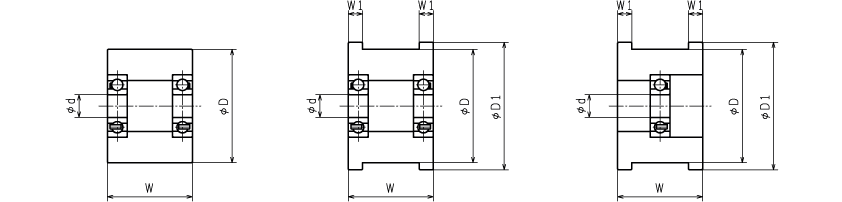

| RESIN ROLLER FLAT | RESIN ROLLER WITH FLANGE ON BOTH SIDES |
| D-SERIES RESIN ROLLER |
 |
| RESIN ROLLER FLAT TYPE | （mm） |
| PN | D | D1 | W | W1 | Shape of Outer ring | Material of Outer ring | Bearings |
| DBA10025-T | 2.5 | 10 | - | 7 | Flat | PTFE | B6525(2 pcs) |
| DBA2005 | 5 | 20 | - | 20 | Flat | POM | B13050(2 pcs) |
| DBA15506-T | 6 | 15.5 | - | 8 | Flat | PTFE | B10060(2 pcs) |
| DBA4008 | 8 | 40 | - | 30 | Flat | POM | B22080(2 pcs) |
| Resin／Metal bearing in resin roller, We can arrange special orders. |
| RESIN ROLLER WITH FLANGE ON BOTH SIDES TYPE | （mm） |
| PN | d | D | D1 | W | W1 | Shape of Outer ring | Material of Outer ring | Bearings |
| DUA2005 | 5 | 20 | 25 | 20 | 5 | RESIN ROLLER WITH FLANGE ON BOTH SIDES TYPE | POM | B13050(2 pcs) |
| DUB13606-D | 6 | 13.6 | 15.2 | 8.5 | 1.5 | RESIN ROLLER WITH FLANGE ON BOTH SIDES TYPE | CONDUCTIVE POM | MR106ZZ(1 pcs) |
| DUA4008 | 8 | 40 | 45 | 30 | 5 | RESIN ROLLER WITH FLANGE ON BOTH SIDES TYPE | POM | B22080(2 pcs) |
| Resin／Metal bearing in resin roller, We can arrange special orders. |
