POM BEARINGS B-SERIES

Material	ＰＯＭ (Polyacetal)
Balls	SUS316/SUS304
Heat resistant temperature	From -20℃ to 105℃
Application	In atmosphere, underwater, chemical solution

Characteristics of B series Plastic (Ball) Bearings

Polyacetal	An engineering plastic with balanced mechanical strength properties, and it is excellent especially in fatigue, abrasion resistance, creep resistance, dimensional stability, self lubricity, heat resistance (continuous use at 105℃ or less), and chemical resistance.
High quality High precision	Plastic bearings with the number one dimensional accuracy Dimensional precision of inner and outer diameter ± 0.01 mm Manufactured with bearing clearance amount taken into account of expansion and shrinkage of plastic caused by temperature change
Light rotation torque Light weight	Light rotation torque by grease-less, lubricating oil free Weight reduction for mechanical equipments
Rustless Chemical resistant	It can be used in water-exposed environment, underwater, chemical solution. (Weak against acids, but resistant to alkalis and organic solvents)
Nonmagnetic	Inner and outer ring cages are made of POM, balls are stainless steel (SUS304 or SUS316)
Electrical Insulation	It doesn't pass electricity, but attention is needed for static electricity
Cleanroom	Grease-less, lubricant free, good for clean environments
Caution	When dust, abrasion powder, etc. enters inside the bearing, rotation torque may change. Some sealed types are available.
Custom-made Options	・Change material - Select suitable material　e.g. Conductive POM, PPS ・Change shape of outer ring　e.g. R shape, U groove, V groove, recessed groove, flange shape ・Change inner ring material　e.g. Stainless steel shaft screw, plastic shaft screw ・Specify dimension　e.g. Change of outer diameter, inner diameter, widths, bearing internal clearance ・Production of plastic bearings assembled parts e.g. Plastic roller, plastic collar, plastic washer, plastic holder ・Clean packaging　e.g. Packaging after cleaning with pure water in clean room.

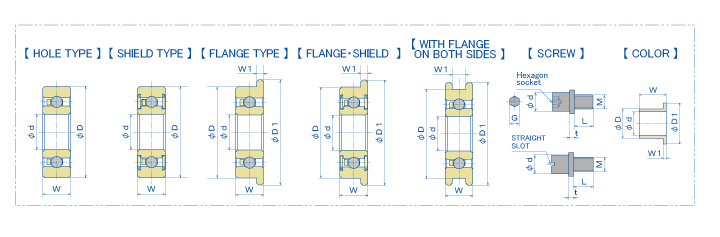

※There is a clearance groove at the base of hexagon socket screw head and straight slot screw head.

OPEN TYPE POM BEARINGS

　

FLAT TYPE

（mm）

Type	PN	Outer Diameter D	Inner Diameter d	Width W	Allowable Load※
					Ｎ	kgf
Hole
	B4010	4	1	1.5	4.9	0.5
	B5015	5	1.5	2	7.8	0.8
	B6020	6	2	2.3	9.8	1
	B6525	6.5	2.5	2	9.8	1
	B8030	8	3	3	19.6	2
	B10030	10	3	Outer ring 4 Inner ring 4.5	19.6	2
	B9040	9	4	2.5	19.6	2
	B13050	13	5	4	29.4	3
	B10060	10	6	2.3	19.6	2
	B18060	18	6	5	29.4	3
	B19060	19	6	6	29.4	3
	B20060	20	6	5	29.4	3
	B22080	22	8	7	49.0	5
	B220100	22	10	6	49.0	5
	B260100	26	10	8	68.6	7
	B300100	30	10	9	68.8	7

※Allowable Load is 300 R.P.M and endurance is consecutive 1 million revolutions.

FLANGE TYPE

Type	PN	Outer Diameter D	Outer Diameter D1	Inner Diameter d	Width W	Width W1	Allowable Load※
							N	kgf
Hole	B13050F	13	15	5	5	1	-	-
Hole	B18060F	18	20	6	5	1	29.4	3
Hole	B22080F	22	25	8	7	1.5	49.0	5
Hole	B220100F	22	25	10	7	1.5	49.0	5
Sealed	B13050FZZ	13	15	5	5	1.0	-	-
Sealed	B22080FZZ	22	25	8	7	1.5	49.0	5
Sealed	B220100FZZ	22	25	10	7	1.5	-	-

※Allowable Load is 300 R.P.M and endurance is consecutive 1 million revolutions.

FLANGE ON BOTH SIDES TYPE

Type	PN	Outer Diameter D	Outer Diameter D1	Inner Diameter d	Width W	Width W1	Allowable Load※
							N	kgf
Hole
	B6020U	6	7	2	2.3	1.2	-	-
	B8030U	8	9	3	3	1.5	19.6	2
	B9040U	9	10	4	2.5	1.2	19.6	2

※Allowable Load is 300 R.P.M and endurance is consecutive 1 million revolutions.

SEALED POM BEARING

FLAT TYPE

(mm）

Type	PN	Outer Diameter D	Inner Diameter d	Width W	Allowable Load※
					N	kgf
Hole
	B13050ZZ	13	5	4	29.4	3
	B22080ZZ	22	8	7	49.0	5
	B220100ZZ	22	10	7	49.0	5

※Allowable Load is 300 R.P.M and endurance is consecutive 1 million revolutions.

Please do not hesitate to make any request to our Venture Buisiness Division for calalogue, inquiry, quotation and order of our products.

---
